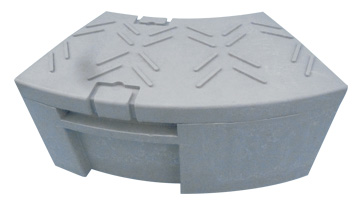

Used for obstacle avoidance and sharp bends.

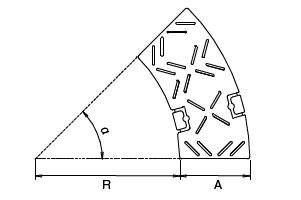

Size
| Size | A (mm) |
α (Degrees) |
R (mm) |
Weight (kg) |
Accessories | Screwtype | Clasptype | Bandtype |
|---|---|---|---|---|---|---|---|---|
| G90 series | 120 | 45 | 350 | 2 | Male-male adaptor 1 set |
－ | － | ＋ |
| G135 series | 170 | 4 | － | － | ＋ | |||
| 150B series | 210 | 5 | ＋ | ＋ | ＋ | |||
| 200B series | 270 | 8 | ＋ | ＋ | ＋ | |||
| 300B series | 390 | 13 | ＋ | ＋ | ＋ | |||
| 430C series | 540 | 19 | ＋ | ＋ | ＋ |

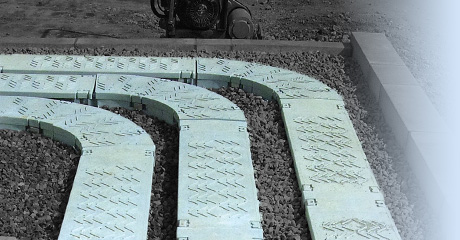

Installation
-
Obstacle avoidance
-
90 degree bend
