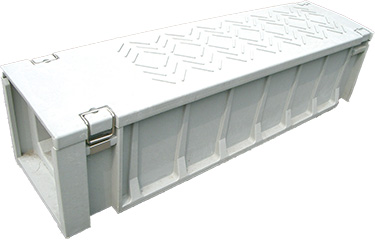

Used for straight route.
Joint system allows for minor obstacles to be avoided without the need for 45 degree bend units.

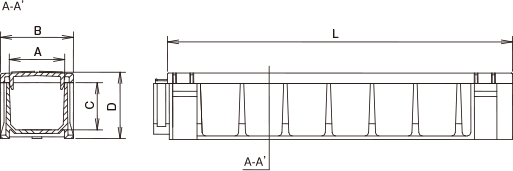

Size
| Size | A (mm) |
B (mm) |
C (mm) |
D (mm) |
Length (mm) | Weight (kg) | Screw type | Clasp type | Band type |
|---|---|---|---|---|---|---|---|---|---|
| G90 series | 90 | 120 | 100 | 136 | 1000 | 7 | － | － | ＋ |
| G135 series | 135 | 170 | 125 | 170 | 1000 | 10 | － | － | ＋ |
| 150B series | 160 | 210 | 135 | 190 | 1000 | 13 | ＋ | ＋ | ＋ |
| 200B series | 200 | 270 | 185 | 255 | 1000 | 21 | ＋ | ＋ | ＋ |
| 300B series | 300 | 390 | 175 | 265 | 1000 | 27 | ＋ | ＋ | ＋ |
| 430C series | 450 | 540 | 255 | 360 | 500 | 24 | ＋ | ＋ | ＋ |
(note) Including two screws. (or two clasps or one band)
Installation
-

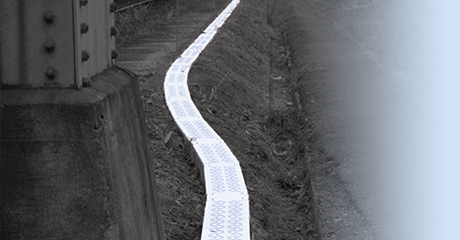

Obstacle Avoidance
-
Unevenness
-
A radius of 13-15m
can be created using only straight units.Click here for inquiries.
