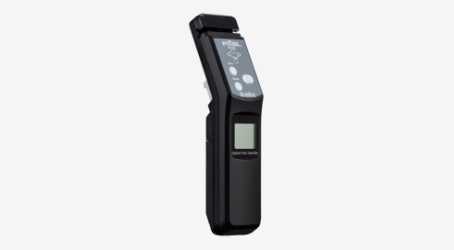

Optical Fiber Identifier ID-H/R v4

This measuring instrument is used to identify fiber cores at the branch points and termination stands of closures without cutting the optical fibers.

• Faster Measurements
  The instrument completes measurements in just 2seconds.
  approximately 1.3×faster than the previous model.
• Reduced Operator Workload
  The lever lock function eliminates the need to keep squeezing during operation.
  * Lever lock function ON/OFF selectable.
• Easy-to-Read LCD Display
  Backlit LCD display for reliable visibility in low-light conditions.
• Now with USB Type-C Charging
  USB Type-C charging.
  No more battery replacement, less environmental impact
  * The optional ID-H/R v4 charging kit is required.
• No Head Replacement Required
  Supports fibers with jacket diameters from 0.25 mm single fibers to 3 mm cords. Supports 16-Fiber Rollable Ribbon.
• Intuitive Operation
  Easy setup and immediate fiber identification after power-on.
• Supports Bend-Insensitive Fibers
  Also supports identification of ITU-T G.657 A2 optical fibers (R7.5).
• Improves usability with a light-receiving sensitivity adjustment function
  It can suppress the effects of ambient light.
• Optical Signal Intensity Display Function
  Displays estimated optical signal intensity values.
