- Furukawa Electrics manufactures numerous foamed products that apply the technologies for electrical wire sheathing.
- These products offer functions such as flame-retarding and heat-resisting properties, as well as surface smoothness and ease of bonding with other materials.
- The company responds to your needs with products that suit the needs of the times, including environmental issues and revisions to the laws.
Flame-retardant products
The following table lists our products and their performance.
The flame retardant products need to be specially ordered. Please contact us at the following address to place your order, indicating the number of lots.
Europe and the U.S.area
Asia area
| Product name | Non-halogen flame-retarding grade | FOAM ACE flame-retarding grade |
FOAM ACE Heat-resistant and flame-retardant grade |
FUNEN ACE | |
|---|---|---|---|---|---|
| Grade | UD3000 | NB3000 | QB3000 | TB4000 | |
| Density(kg/m3) | 60 | 37 | 35 | 39 | |
| Flame retarding | (JL-94 horizontal) | Equivalent to HF-1 | HF-1 | Equivalent to HF-1 | Equivalent to HF-1 |
| (JL-94 vertical) | Equivalent to V-2 | Equivalent to V-2 | Equivalent to V-2 | Equivalent to V-2 | |
| Substances restricted under the RoHS Directives | Not contained | Not contained | Not contained | contained(Note 1) | |
| Halogen content | Not contained(Note 2) | contained | contained | contained | |
(Note 1) Contains DbDEBack to Main Content
(Note 2) Contains phosphorous flame-retarding agentsBack to Main Content
Smooth-surface products
| FOAM ACE WB grade |
Cross-linked polyethylene foam The surface is made smooth by irradiating electron rays. |
Materials for forming
These are heat-insulating materials suited for vacuum and press forming.
This is a specially ordered product. Please contact us at the following address if you wish to place an order.
Europe and the U.S.area
Asia area
Car air-conditioners
Drain pans
| FOAM ACE | Cross-linked polyethylene foam |
Conductive products
These products are used as packaging materials for electronic components that need to remain free of dust and static electricity, and as floor cushioning materials.
| Conductive-grade products | D2010 | 1X1250X1000 | prevent static electricity |
|---|---|---|---|
| D3020 | 2X1250X2000 | ||
| D3030 | 3X1250X2000 | ||
| Antistatic-grade products | E3020 | 2X1350X2000 | bleed-out occurs |
| E3030 | 3X1350X2000 | ||
| Permanently antistatic-grade products | EH4030 | 3X1350X2000 | bleed-out does not occur |

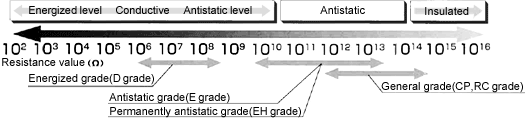

Relationship between the product grade and level of the resistance value
| EFCELL | Non-cross-linked polypropylene sheet with low foaming ratio |
Products bonded with other materials
These products are used as packaging materials for electronic components that need to remain free of dust and static electricity, and as floor cushioning materials.
| Weather-resistant film-bonded foam - foam bonded with special films | Various foam products can be bonded with weather-resistant film and special film to extend service life and enhance performance. Feel free to consult us about products that suit your purposes and applications. |
