The multi-strand wire 'TEX-ELZS' is a composite twisted enameled wire covered with the same three insulation layers as TEX-E, and can be used in an even higher frequency range than TEX-ELZ.

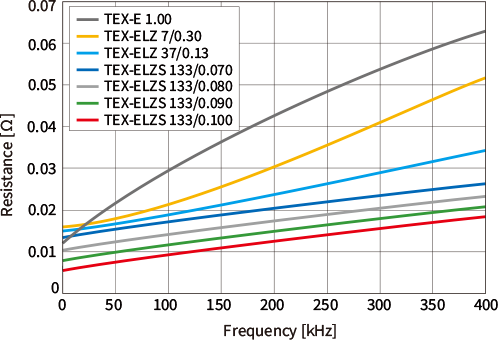

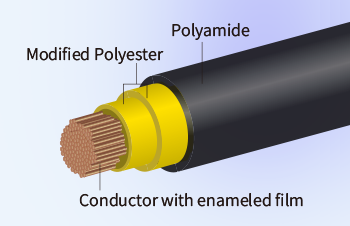

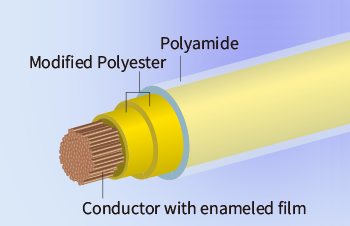

Structure
Dimensions
| Nominal Conductor Diameter (mm) |
Standard Overall Diameter (mm) |
Max.Overal Diameter (mm) |
Max.Conductor Resistance at 20℃ (Ω/km) |
Weight (kg/km) |
|---|---|---|---|---|
| 133/0.070 | 1.430 | 1.458 | 39.04 | 5.833 |
| 133/0.075 | 1.505 | 1.533 | 33.80 | 6.622 |
| 133/0.080 | 1.580 | 1.608 | 29.55 | 7.462 |
| 133/0.085 | 1.655 | 1.683 | 26.06 | 8.352 |
| 133/0.090 | 1.730 | 1.758 | 23.15 | 9.294 |
| 133/0.095 | 1.805 | 1.833 | 20.70 | 10.29 |
| 133/0.100 | 1.880 | 1.908 | 18.62 | 11.33 |
(Reference Values)
Note: All the above values are shown just for reference and may differ slightly from batch to batch.
