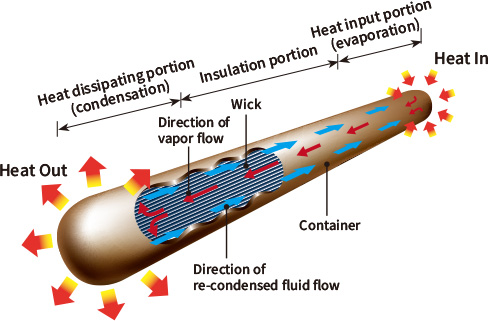

In space, heat dissipation through air convection is not possible, making heat management using heat pipes effective. Based on many years of experience in ground infrastructure, Furukawa Electric is advancing the development of heat pipes for space applications.

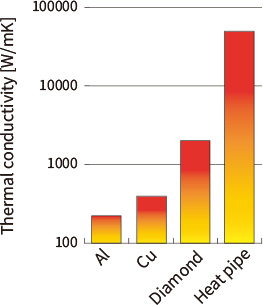

We offer heat pipe modules that operate below freezing and have excellent thermal conductivity under reverse operation (top heat) conditions.
Features
- Operating temperature range: -40℃ to 100℃
- Orientation-independent design (supports top heating)
- Diameter: 4mm or more
- Capable of bending and flattening processing
- Compatible with air transport
Benefits

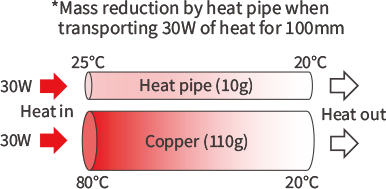

- Lightweight heat dissipation components

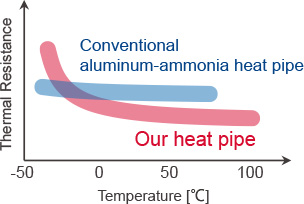

- Rapid thermal response even in low-temperature environments
- No installation direction constraints during ground testing
- Effective heat transport even in confined spaces
- High customizability
Applications
- Thermal management of high heat-generating components
- Applications in ICs, switching devices, laser light sources, amplifiers, etc.
