The S-band transceiver is an essential communication device for satellites, primarily used for communication with ground stations. The transceiver under development is designed to be compact and lightweight enough to be mounted on ultra-small satellites, and supports multiple modulation methods to enable high-speed communication. This enables rapid transmission and reception of large data such as images and communication with various ground stations, facilitating swift commands from the ground and achieving more advanced missions.
Features
- Compact and lightweight
- Supports multiple modulation and demodulation methods
- Achieves high bit rates for both transmission and reception
- High reception sensitivity

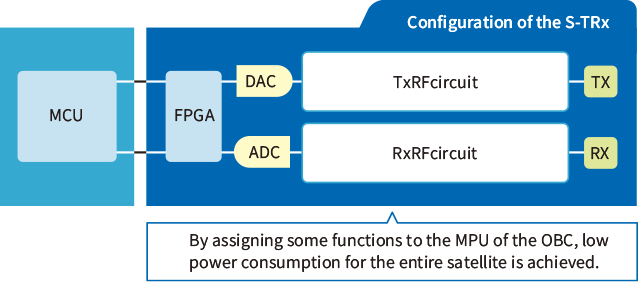

- Easy connection with OBC (On-Board Computer)
Specifications
| Item | Specification | |
|---|---|---|
| Mass | 200g (including casing) | |
| Dimensions | 100 × 87.2 × 20 mm | |
| Reception (Rx) | Reception Sensitivity | -115 dBm |
| Power Consumption | 0.6W or less | |
| Data Bit Rate | QPSK: 164 kbps (Bandwidth 100 kHz) | |
| Demodulation Method | QPSK | |
| Transmission (Tx) | Transmission Power | +23 dBm max |
| Power Consumption | 5W or less | |
| Data Bit Rate | BPSK: 410 kbps (Bandwidth 500 kHz) QPSK: 820 kbps (Bandwidth 500 kHz) 8PSK: 1230 kbps (Bandwidth 500 kHz) |
|
| Modulation Method | BPSK, QPSK, 8PSK | |
| RF Connector for Tx/Rx | SMA (50Ω) | |
| Channel Count | Transmission: 1 ch, Reception: 1 ch | |
| RF Connector Count | Transmission: 2, Reception: 2 (split by internal 3dB coupler) | |
Benefits
- Can be mounted on small to medium-sized satellites
- Enables high-speed transmission and reception of large data such as images
- Ensures compatibility with various ground stations
- Supports achieving advanced mission objectives
※ Technical information (values) in this document are typical values and not guaranteed values.
※ The contents of this document are subject to change without notice.
