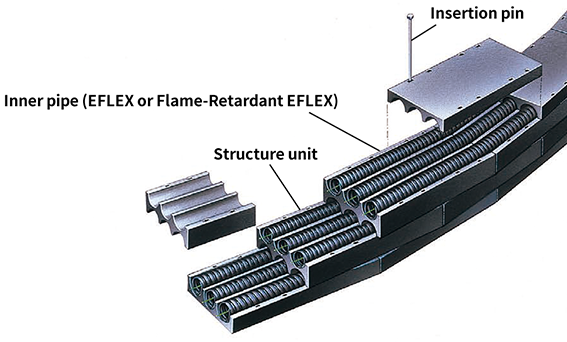

Duct Bank Light is an innovative modular multi-hole duct that skips concrete curing with its advanced assembly system, enabling faster construction, less labor, and lower costs.
Features
-

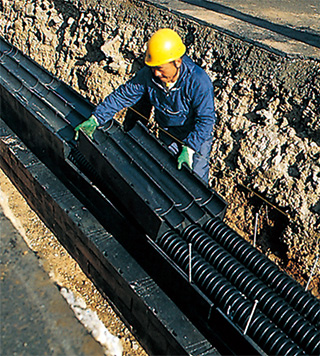

Labor-saving
Lightweight design enables easy manual installation.
-
Impact

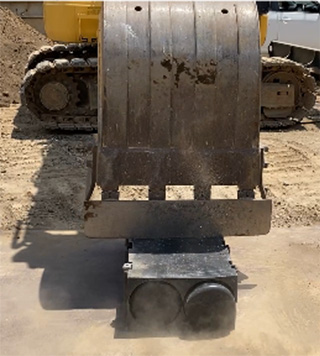

ResitantDesigned to withstand backhoe impacts, reducing cable damage risks
Shorter
Construction
Time
No concrete curing required.

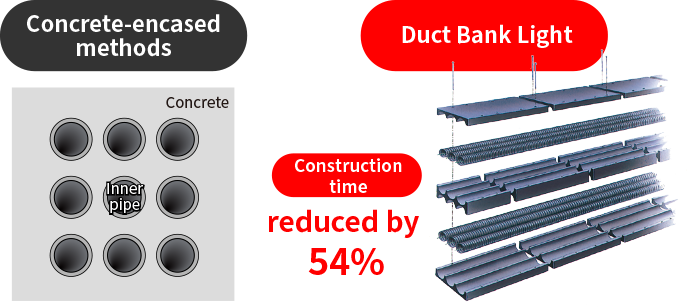

Construction time reduced by 54% compared to conventional concrete-encased methods.
(note) Based on internal testing.
Environmentally
Friendly
Structural units made using recycled plastics
How to use
Excavate to the width specified in the design and compact the floor surface to ensure it is level.
Installation procedure
-
① Install the lower structure unit.
-
② Install the inner pipe.
Use long pieces of inner pipe as much as possible.
-
③ Install the middle structure unit.
At this time, shift it by 1/2 in the longitudinal direction.
-
④ Repeat steps ② and ③ as necessary, and finally cover it with the upper unit.
-
⑤ After all units are assembled, insert two pins diagonally into each structure unit..
※ Adjust the length by cutting at the wall section, as there may be discrepancies in length.
