Smart Cellular Board (SCB) is a low-dielectric foamed board. Our proprietary foaming technology enables high-heat-resistant plastics, including engineering and super engineering plastics, to achieve dielectric properties far lower than standard plastics.
It simplifies installation and design for data center equipment.
Features

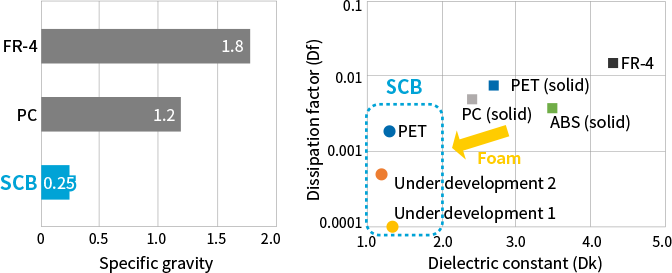

Smart Cellular Board (hereinafter “SCB”) is a cellular foamed, board type low dielectric material. Using our original foaming technology, it is possible to foam highly heat resistant plastics such as engineering plastic and super engineering plastic and obtain even lower dielectric properties than are achievable with typical low dielectric plastics.
Proposals
-

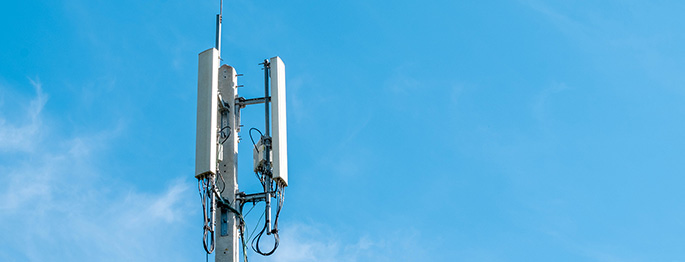

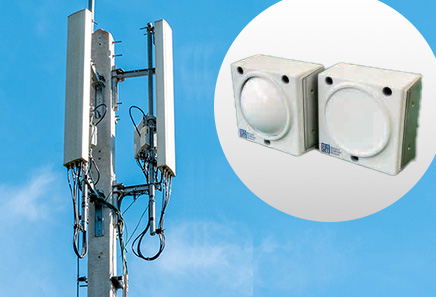

Proposal for a radome material
- Low dielectric constant (Dk)
- Low dissipation factor (Df)
- High radio wave permeability Lightweight
- Plastic material that is simple to design (limit the frequency/ thickness dependency)
-

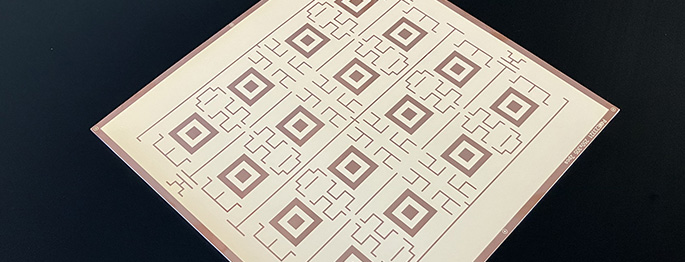

Proposal for a circuit board material
- Low dielectric constant (Dk)
- Low dissipation factor (Df)
- Reduced transmission loss
- Limited heat generation
- Formability for printed circuit boards
-

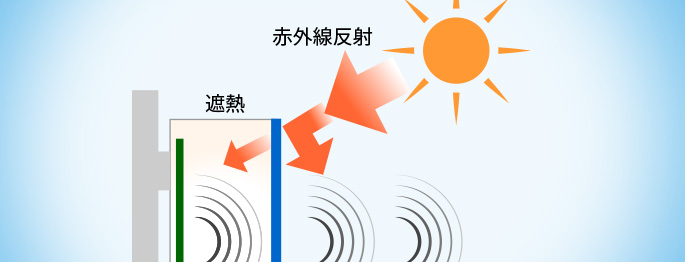

Proposal of infrared ray reflective characteristics for reflecting solar heat
- Reflects infrared rays
- Limited radiant heat
Processing Example

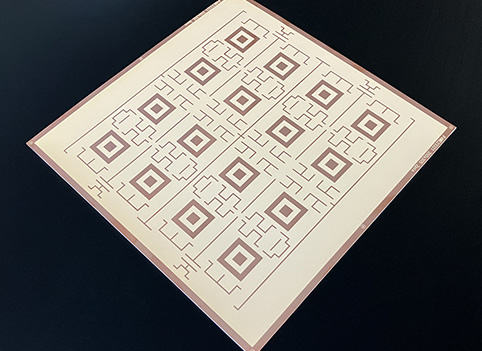

Circuit boards

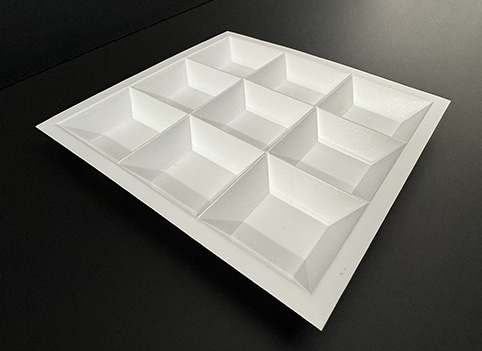

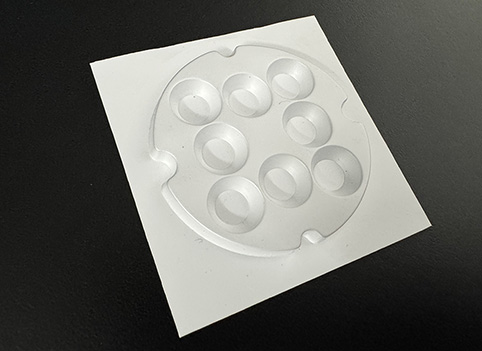

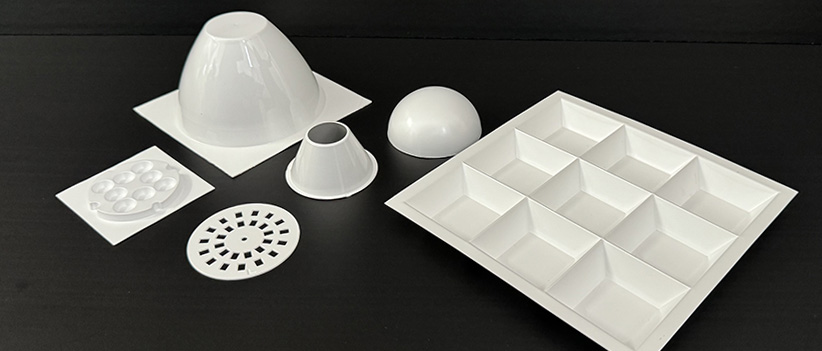

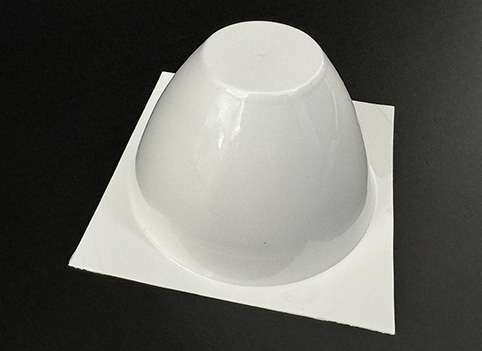

Match Mold Molding
