Lightweight, closed-cell polyethylene foam that helps prevent condensation inside buildings and improves installation efficiency.

Through a variety of compound technologies and efficient installation, it creates a comfortable environment in data centers.

Features

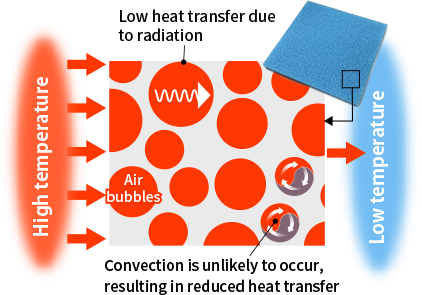

  • Thermal
    Insulation

    Low thermal conductivity combined with low moisture permeability provides excellent insulation performance for both heat retention and cooling applications.

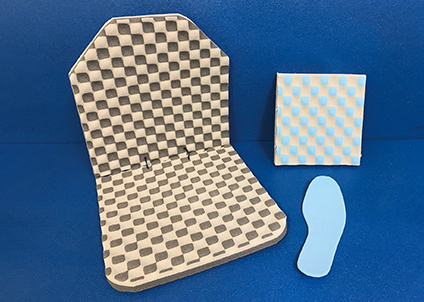

  • Processability

    Can be easily processed into a wide variety of products through cutting, slicing, punching, bonding, heat welding, laminating, embossing, vacuum and compression forming, and printing.

  • Flame
    retardancy

    Product name Grade Density
    （kg/m3）
    Foam Ace Flame-retardant grade NB 37
    Flame retardancy (UL 94 horizontal) Contains substances regulated by the RoHS Directive Contains halogens
    HF-1 No Yes

    A flame-retardant NB grade is available that complies with UL 94 HF-1 (horizontal), based on in-house testing.

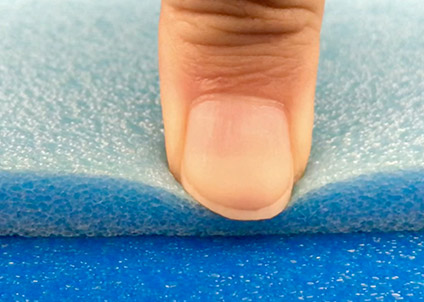

  • Shock-absorbing

    High energy absorption with excellent elasticity and flexibility

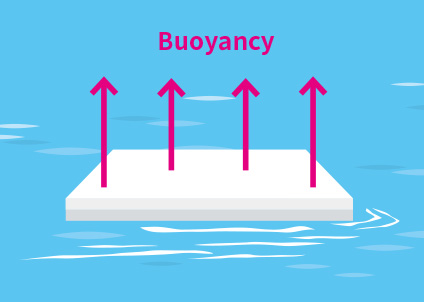

  • Buoyancy

    Lightweight and low in water absorption, offering high buoyancy.

  • Water &
    chemical
    resistance

    Compared with other plastic foams, Form Ace offers superior resistance to chemicals and chemical agents.

Backing material for metal roofs ❝Shield Ace❞

Roof lining material with heat-shielding and insulation performance to improve PUE efficiency.

Verified through testing in an environmental test chamber

Chamber temperature after 120 minutes of testing Chamber temperature （℃）
30℃ 40℃
Shield Ace 33.0

42.5

Funen Ace

37.0

 47.0

Foam Ace

 37.5 47.5

Steel sheet only

 38.0 48.0

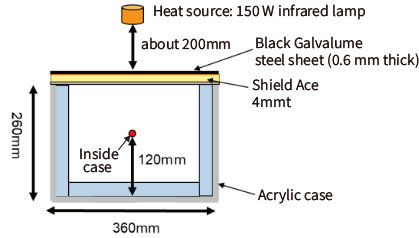

(note) The test apparatus was installed in a large environmental test chamber set at 30°C and 40°C.
An infrared lamp was used to irradiate the steel sheet surface, simulating solar heating. The temperature inside the chamber was measured 120 minutes after the start of the test. All values shown are experimental data measured by our company.

Click here to view the product lineup and specifications.

Cross-linked polyethylene foam ❝FOAM ACE❞
