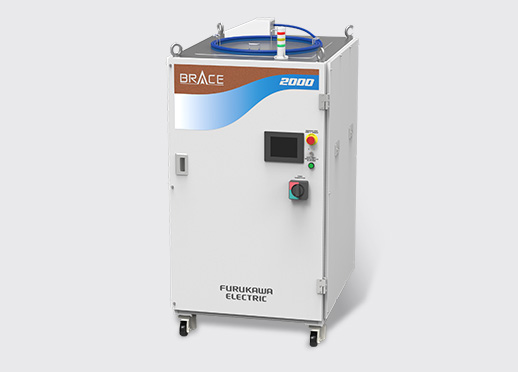

These high-power blue Direct Diode Lasers (DDLs) are equipped with blue laser diode module(s) jointly developed with Nichia Corporation, and achieve excellent energy efficiency by directly outputting blue beam from blue semiconductors.
This blue laser can be used in conjunction with a fiber laser to perform blue-IR hybrid processing, and is also ideal for PI/PAI flat wire insulation removal and various types of copper processing.

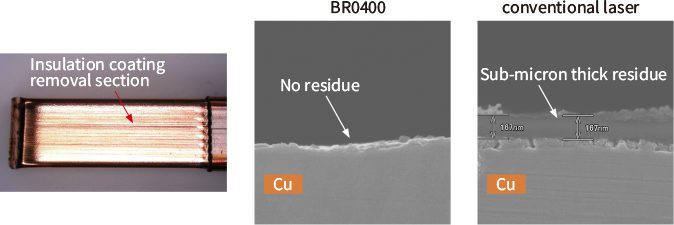

Flat wire insulation removal using the blue laser

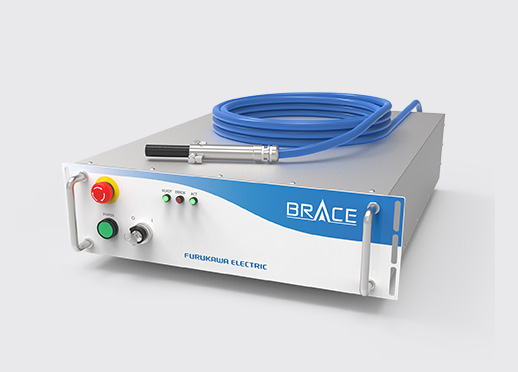

BR0400 is a 400 W blue CW laser that is capable of completely removing PI/PAI insulation from flat wires at high speed and high efficiency, using a blue beam with a high energy density output from a 110 μm core.

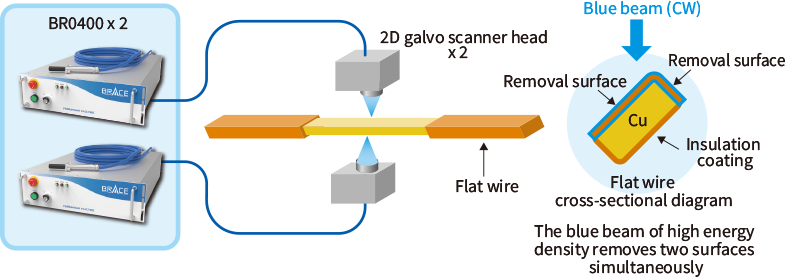

A single unit can remove two surfaces, and two units can be used together to remove all surfaces.
